Brand : HEIDENHAIN

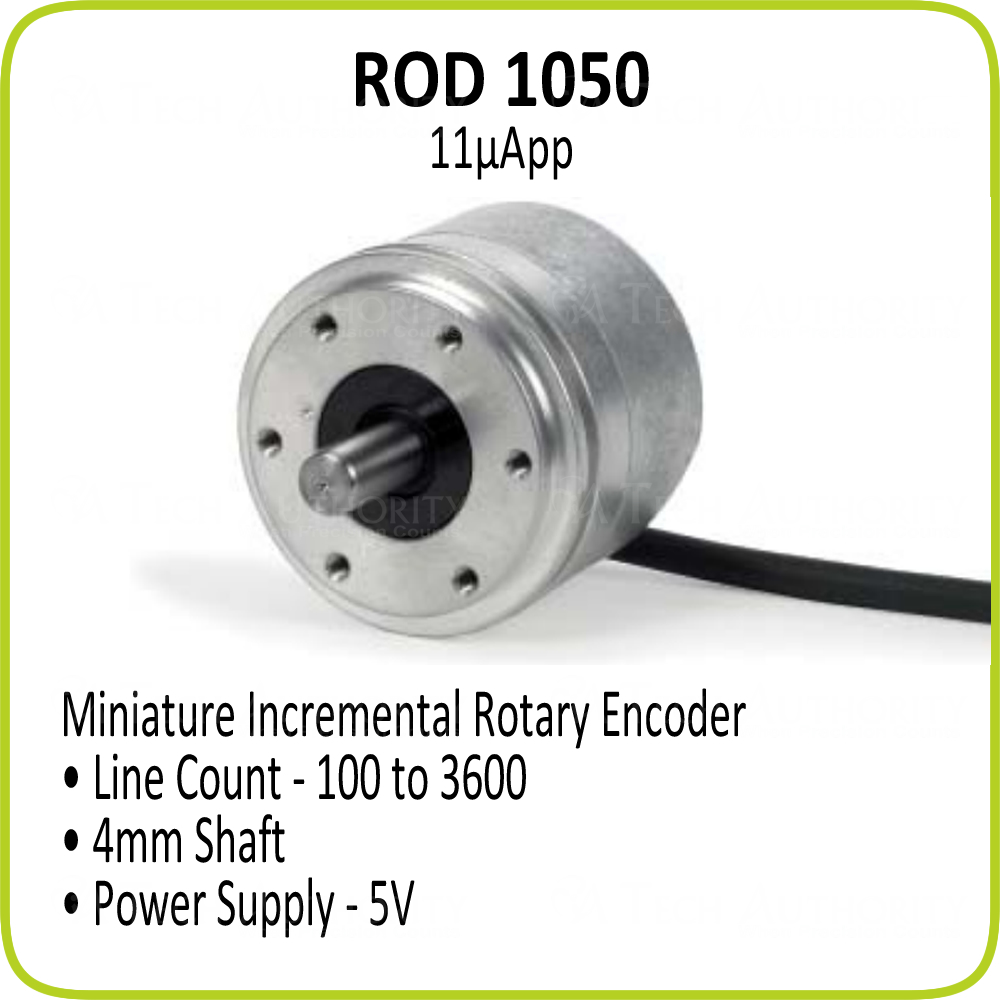

ROD 1050
-
Miniature incremental rotary encoder with integral bearing and separete chaft coupling with 11uApp output
- Request A Quote
Description
HEIDENHAIN's ROD family of rotary encoders are characterized by their rugged design and compact dimensions. ROD encoders are coupled to the drive or the spindle via a separate rotor coupling. Axial motion and misalignment (radial and angular offset) between the encoder shaft and the drive shaft are compensated by the coupling. The ROD 1000 series are miniaturized encoders for use in small devices or for limited installation space with Protection IP 64 (EN 60529). Output signals - 11uApp Line count - 100 to 3600 Mech. perm. Speed - 10000 rpm Power supply - 5 V Cutoff frequency - => 160 kHz Shaft - Stub shaft dia. 4 mm Protection - IP 64 (EN 60529)
