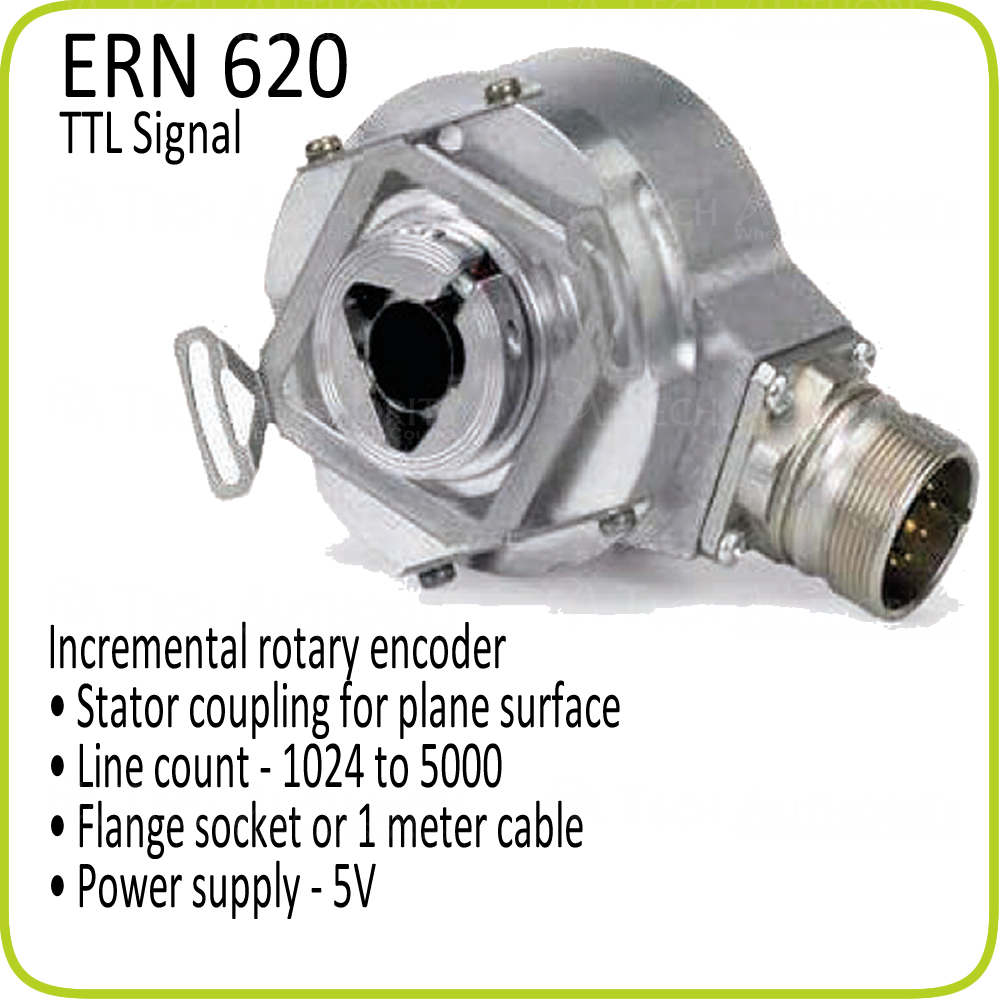

ERN 620 by HEIDENHAIN

Incremental modular rotary encoder with mounted stator coupling with 5v TTL Quadrature output and IP 40 protection.

            click here for more images
HEIDENHAIN ERN rotary encoders have an integral bearing and a stator coupling. The shaft of the ERN is connected directly to the measured shaft. During angular acceleration of the shaft the stator coupling must absorb only that torque resulting from friction in the bearing. ERN rotary encoders therefore display a high dynamic performance and high natural frequencies.

Incremental signals - 5v TTL Quadrature
Line count - 1024 to 5000
Scanning frequency - Max. 300 kHz
Power supply - 5V
