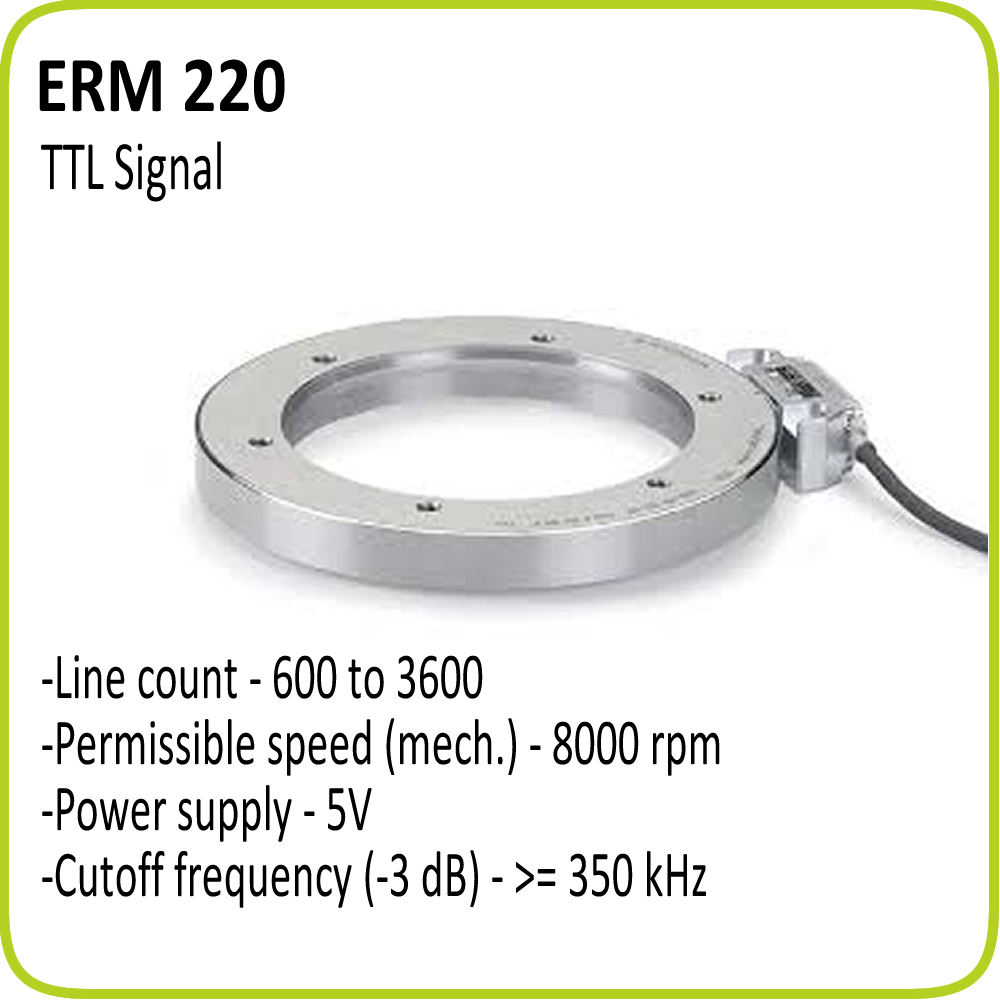

ERM 220 by HEIDENHAIN

The robust ERM modular magnetic encoders are especially suited for use in production machines with accuracies between +/-4` and +/-14`.

            click here for more images
The ERM incremental modular rotary encoders consist of a magnetized circumferential scale drum and a scanning unit with magnetoresistive sensor. These encoders are available for diameters 80mm, 70mm, 80mm, 120mm, 130mm, 180mm, 220mm, 295mm, and 410mm:

Typical applications include machines and systems with large hollow-shaft diameters where protection from dust and splashwater is required.




Line count - 600 to 3600
Permissible speed (mech.) - 8000 rpm
Incremental signals - TTL
Power supply - 5V
Cutoff frequency (-3 dB) - >= 350 kHz
