Products : Machine Tool/CNC : Rotary Encoders : Standard Rotary Encoders : ERM 120

This product has been discontinued by the manufacturer however parts may still be available
Click HERE to view the replacement item


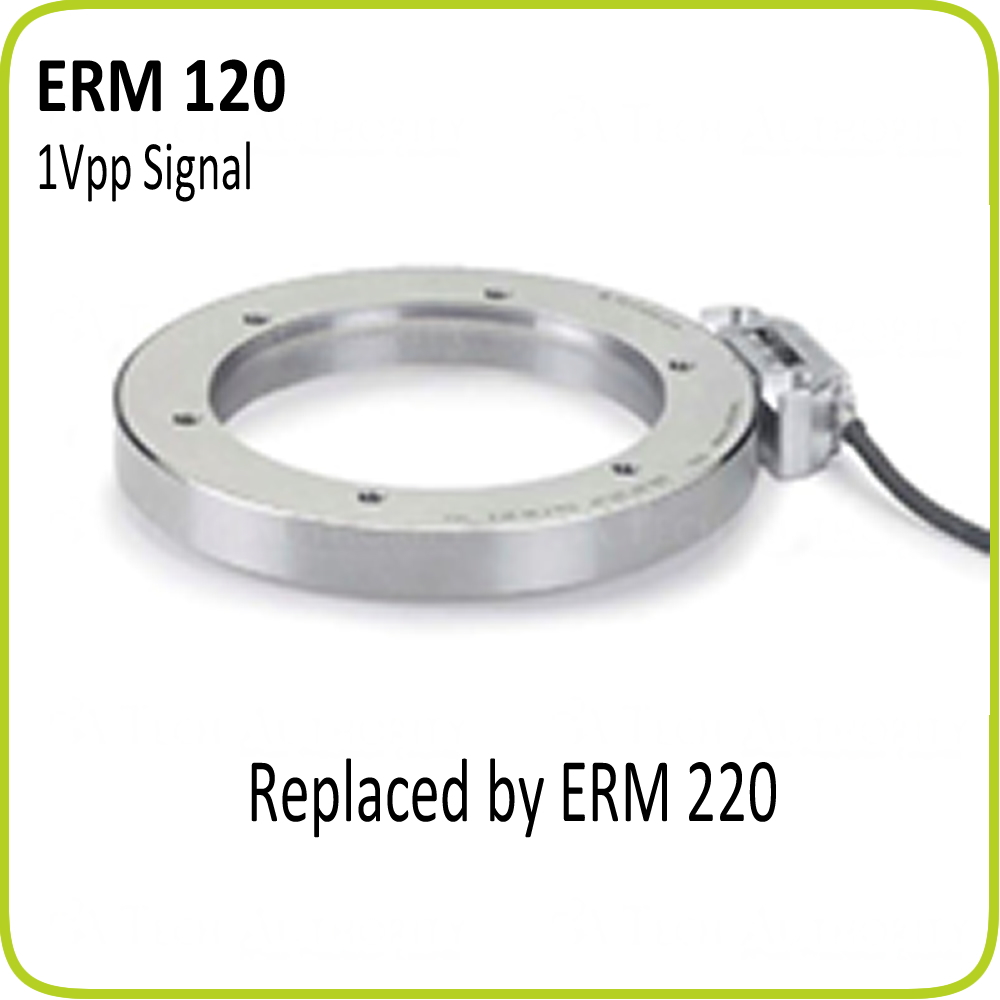

ERM 120 by HEIDENHAIN

Exposed incremental rotary encoder without integral bearing with 5v TTL Quadrature output and IP 66 protection

            click here for more images
The ERM incremental modular rotary encoders consist of a magnetized circumferential scale drum and a scanning unit with magnetoresistive sensor. These encoders are available for diameters of 80 and 180 mm:

Typical applications include machines and systems with large hollow-shaft diameters where protection from dust and splashwater is required.






Drum inside diameter D1 - 180 mm
Outside diameter D2 - 257.5 mm
Line count - 2048
Permissible speed (mech.) - 8000 rpm
Incremental signals - TTL
Power supply - 5V
Cutoff frequency (-3 dB) - >= 200 kHz
Scanning frequency Max. - 300 kHz
