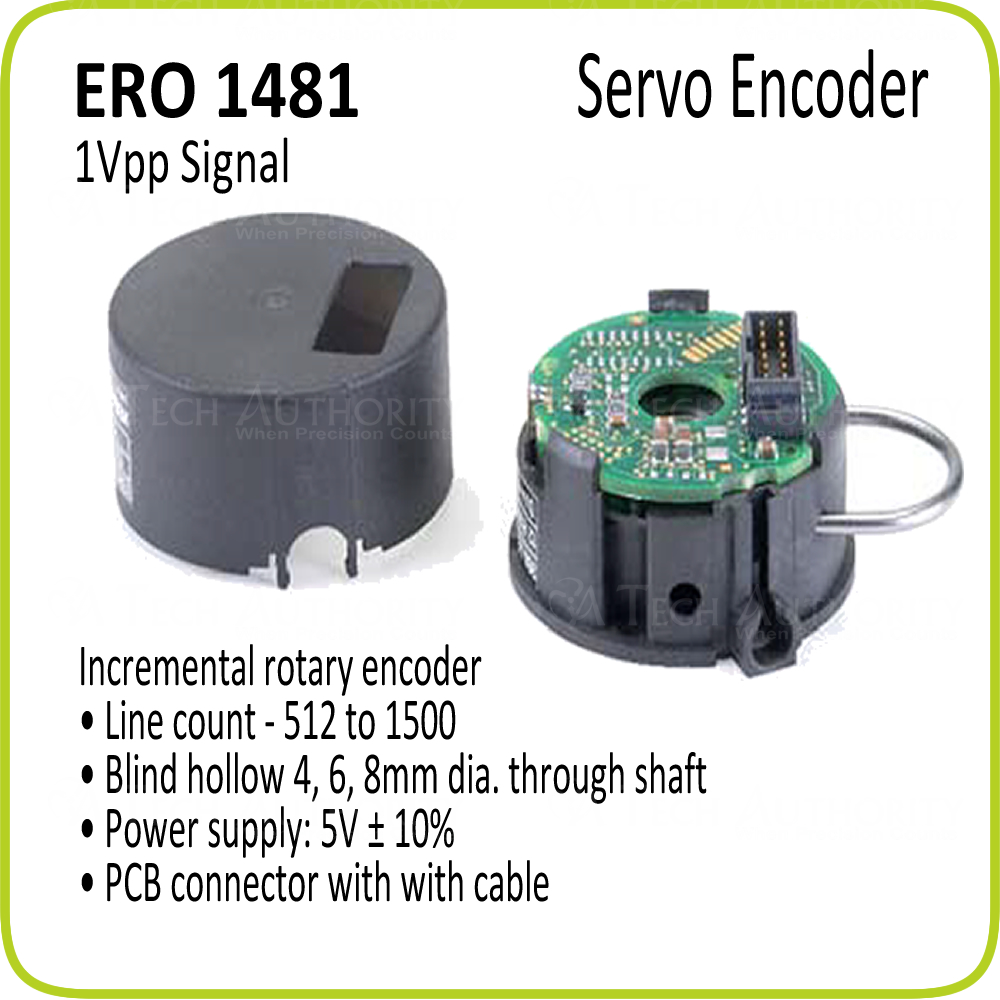

ERO 1481 by HEIDENHAIN

Miniature exposed incremental rotary encoder without integral bearing with 1Vpp output

            click here for more images
ERO incremental modular rotary encoders from HEIDENHAIN consist of a disk/hub assembly and a scanning unit. They were conceived particularly for applications with limited mounting space or when all friction must be avoided.

The ERO 1400 series are miniaturized modular rotary encoders for drive shafts up to 8 mm.

The ERO 1481 features a special integral mounting aid which centers the graduated disk to the scanning unit and sets the gap between the graduated disk and the scanning reticle.

The encoders of the ERO 1400 series are supplied with a cover cap for protection against extraneous light, contamination and electromagnetic fields.

Incremental signals - 1 Vpp
Line count - 512 to 1500
Max. permissible speed (mech.) - 20000 rpm
Hub inside diameter D - 4 mm, 6 mm, 8 mm
Power supply - 5V
Cutoff frequency - => 180 kHz
