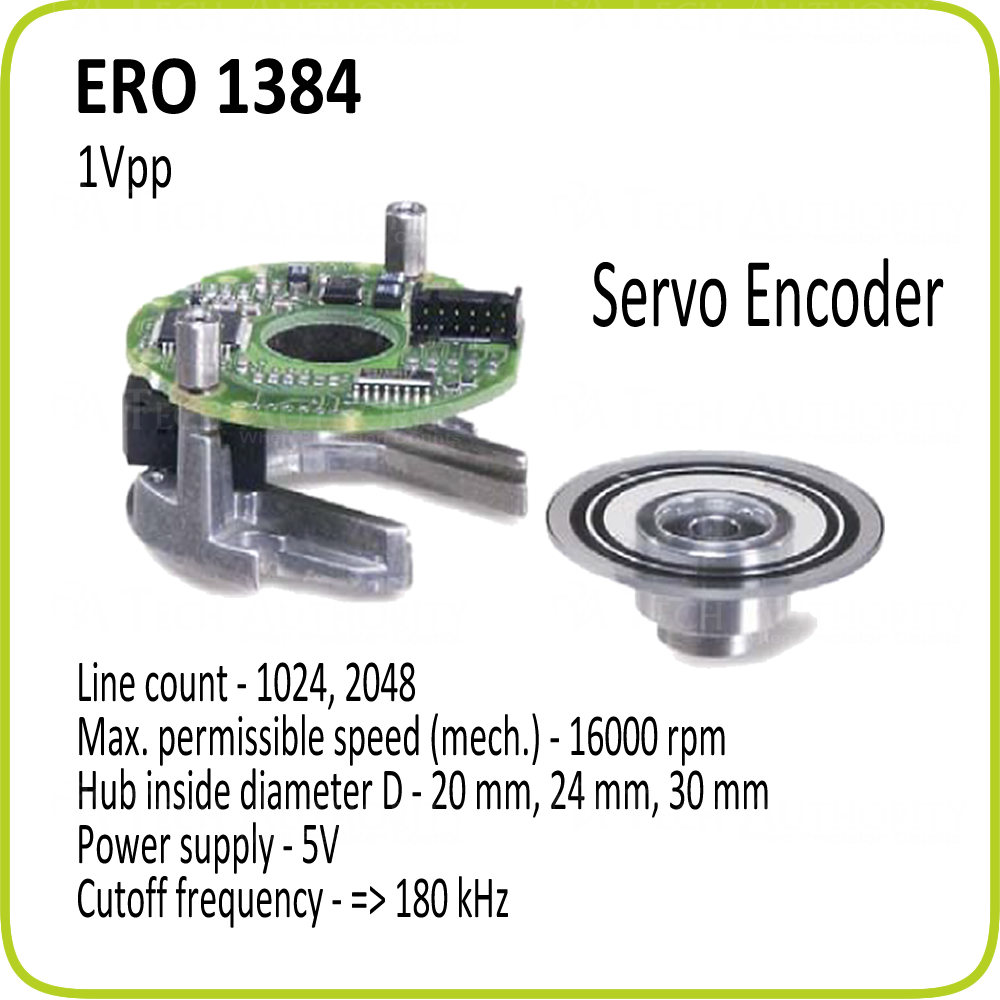

ERO 1384 by HEIDENHAIN
Exposed incremental rotary encoder for large shaft diameters without integral bearing with 1Vpp output
click here for more images
ERO incremental modular rotary encoders from HEIDENHAIN consist of a disk/hub assembly and a scanning unit. They were conceived particularly for applications with limited mounting space or when all friction must be avoided.
On the rotary encoders of the 1300 series the scanning unit can be mounted from the side, permitting installation on through shafts with diameters up to 30 mm.
Incremental signals - 1 Vpp
Line count - 1024, 2048
Max. permissible speed (mech.) - 16000 rpm
Hub inside diameter D - 20 mm, 24 mm, 30 mm
Power supply - 5V
Cutoff frequency - => 180 kHz
