ERN 1326 by HEIDENHAIN

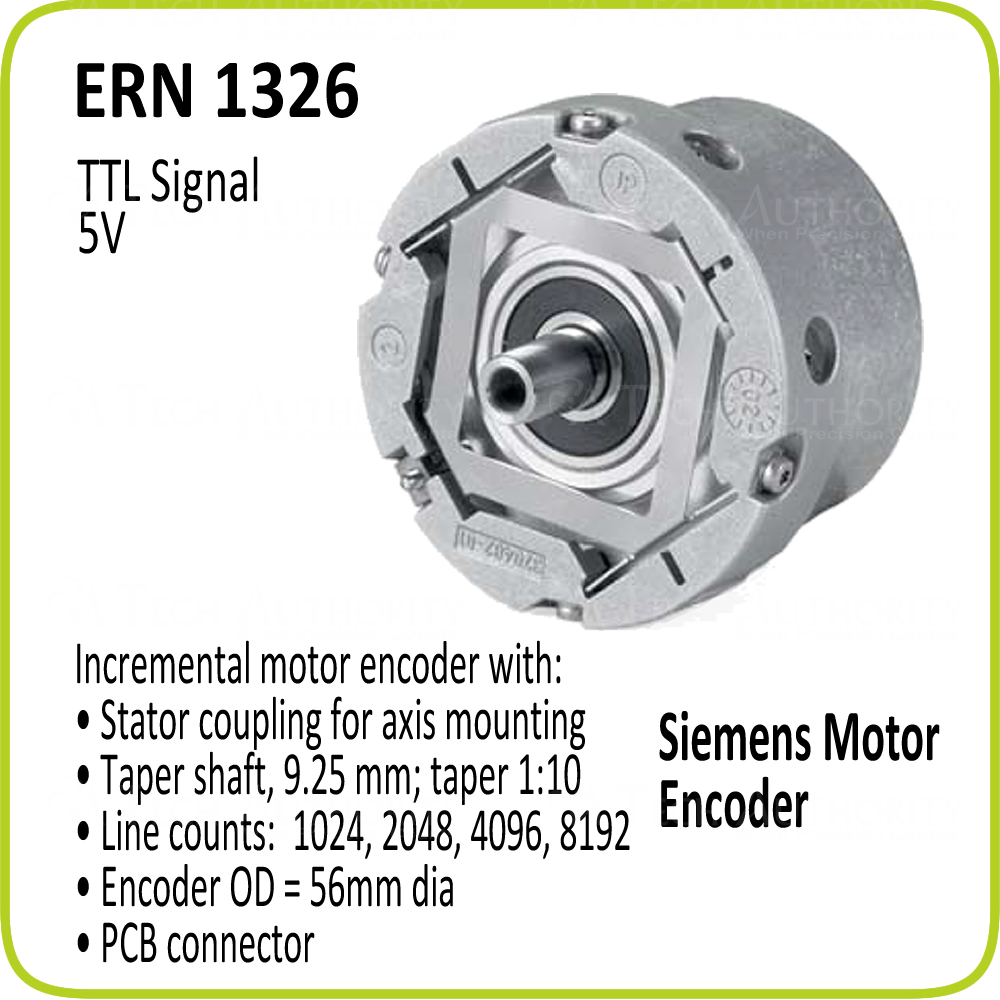

Compact incremental rotary shaft encoder with integral bearing and mounted stator coupling with 5v TTL Quadrature and commutation signal output and IP 40 protection

            click here for more images
HEIDENHAIN ERN rotary encoders have an integral bearing and a stator coupling. The shaft of the ERN is connected directly to the measured shaft. During angular acceleration of the shaft the stator coupling must absorb only that torque resulting from friction in the bearing. ERN rotary encoders therefore display a high dynamic performance and high natural frequencies.

Incremental signals - 5v TTL Quadrature
Line counts - 1024, 2048, 4096
Commutation signals - 3 block commutation tracks with 90 or 120 mechanical phase shift
Power supply - 5V
Operating Temperature - Max. 120C
