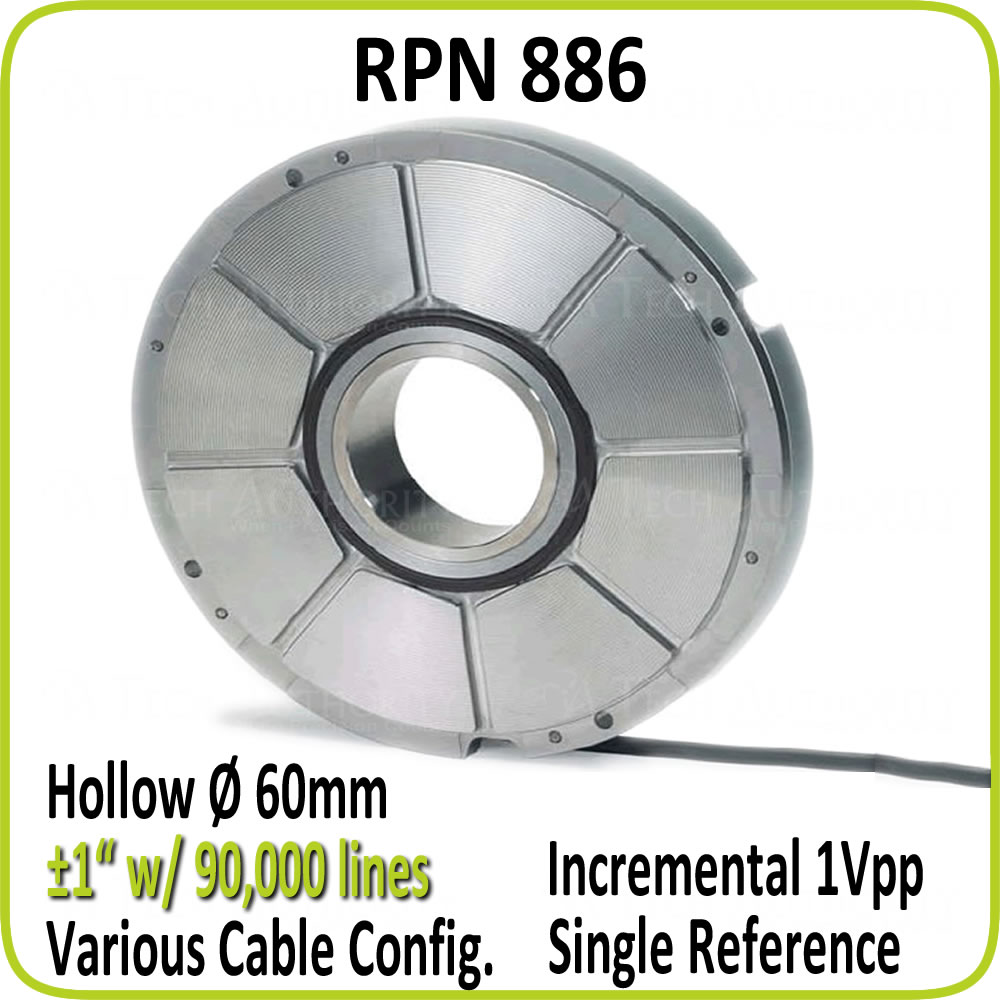

RPN 886 by HEIDENHAIN

RPN Angle encoder with integral bearing, hollow shaft and integrated stator coupling

            click here for more images
Incremental Measuring Method, Integrated stator coupling, Incremental signals- 1 VSS, One Reference Mark, System Accuracy- 1``, Shaft Diameter- 60mm








Line Count 90000 (180000 signal periods)
Reference Mark One
Cutoff frequency -3dB = 800 kHz
Cutoff frequency -6 dB = 1300 kHz
Recommended measuring step 0.00001
ShaftHollow through shaft
Mech. permissible speed 1000 rpm
Starting torque (at 20 C) = 0.5 Nm
