Products : Machine Tool/CNC : Rotary Encoders : Angular Encoders : ROD 250

This product has been discontinued by the manufacturer however parts may still be available
Click HERE to view the replacement item

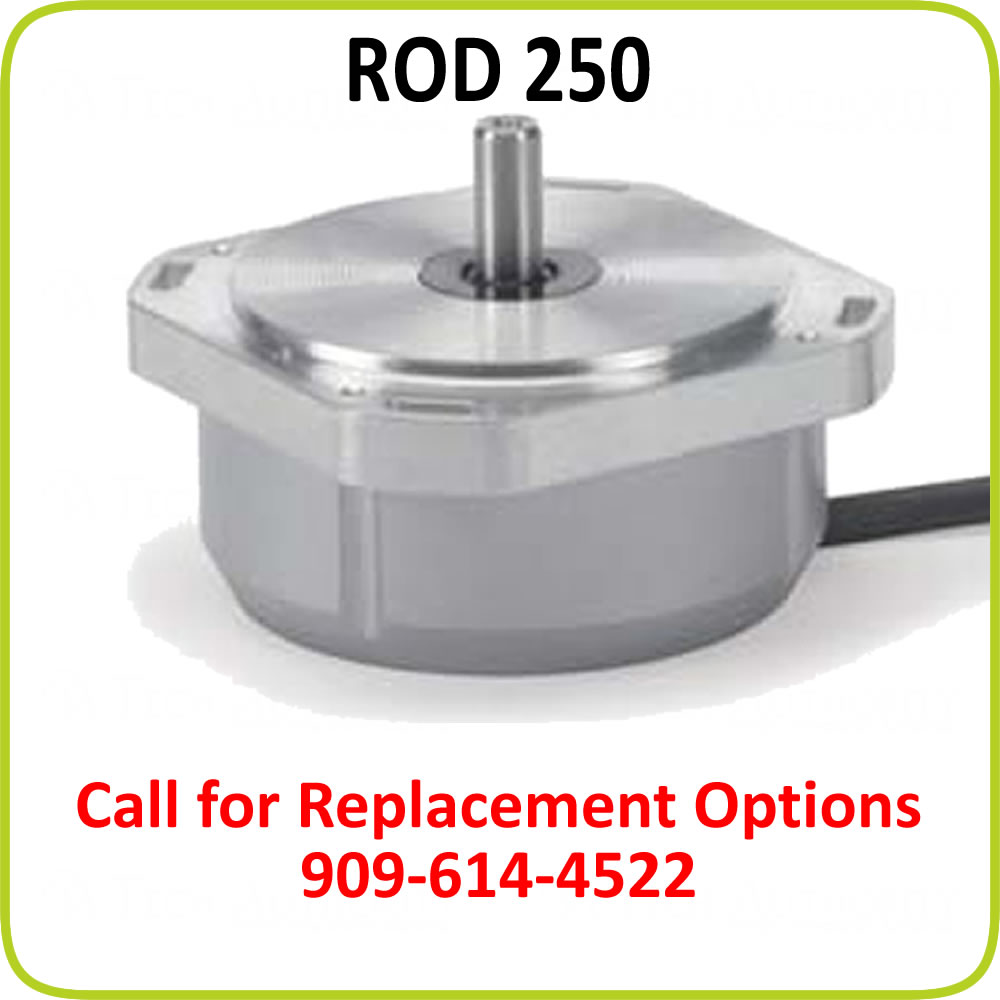

ROD 250 by HEIDENHAIN

Compact incremental angle encoder with integral bearing for separate shaft coupling for measuring steps to 0.0005° with 11uApp Output

            click here for more images
With solid shaft: rugged design, typical applications include rotary tables, tilting tables, positioning spindles and synchronization monitoring. For measuring steps to 0.0005°


Accuracy/Line count
± 7`/9000
± 6`/10000
± 5`/18000
Recommended measuring step - 0.0005°
Incremental signals - 11 µAPP
Permissible speed - 10000 rpm
