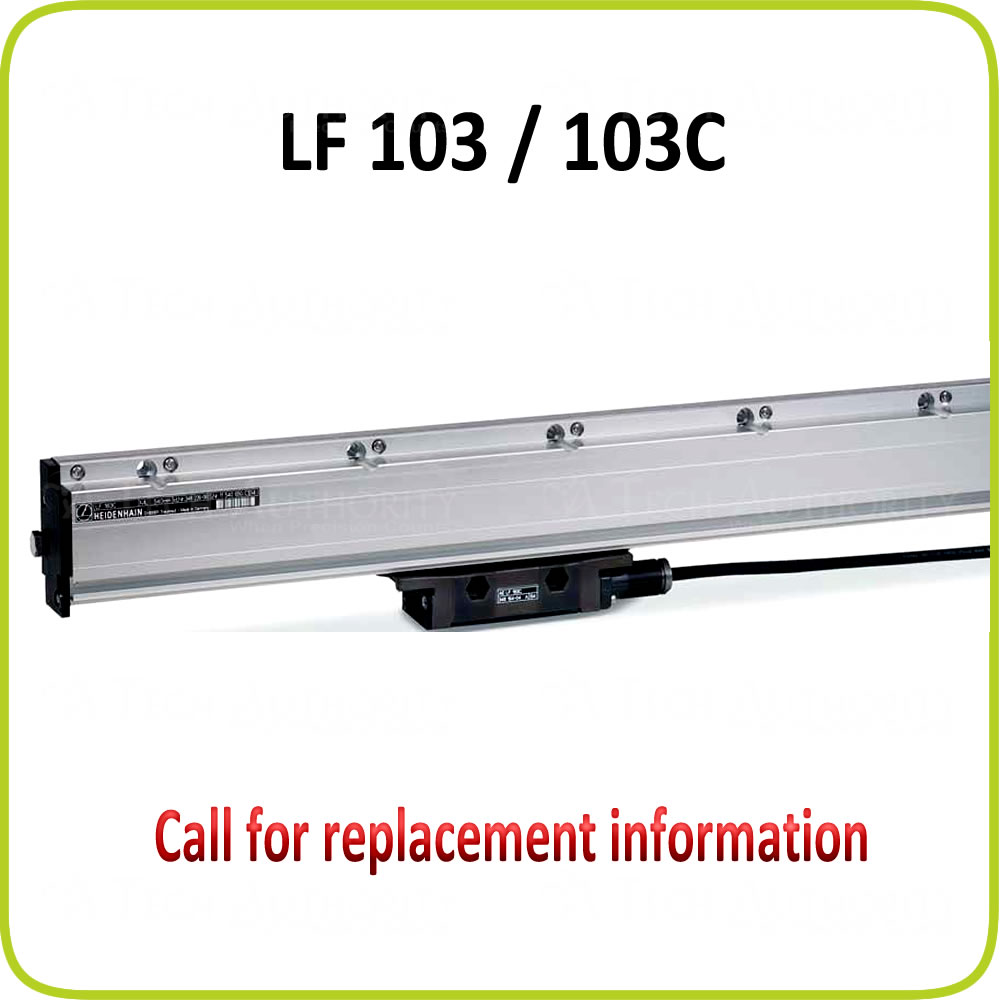

LF 103/C by HEIDENHAIN

Sealed Linear Encoders for Measuring Steps to 0.1 m with 11uApp Output

            click here for more images
Sealed linear encoders of the LF product family are characterized by measuring standards with relatively fine grating periods and high accuracy grades. These linear encoders make it possible to use measuring steps as fine as 0.1 m.

Measuring standard - DIADUR phase grating on steel
Output signals - 11 App
Signal period - 4 m
Accuracy grades - 3 m, 2 m
Recommended measuring steps - 1 m to 0.1 m
Measuring lengths - 140mm to 6040mm
Reference mark - One or distance-coded
