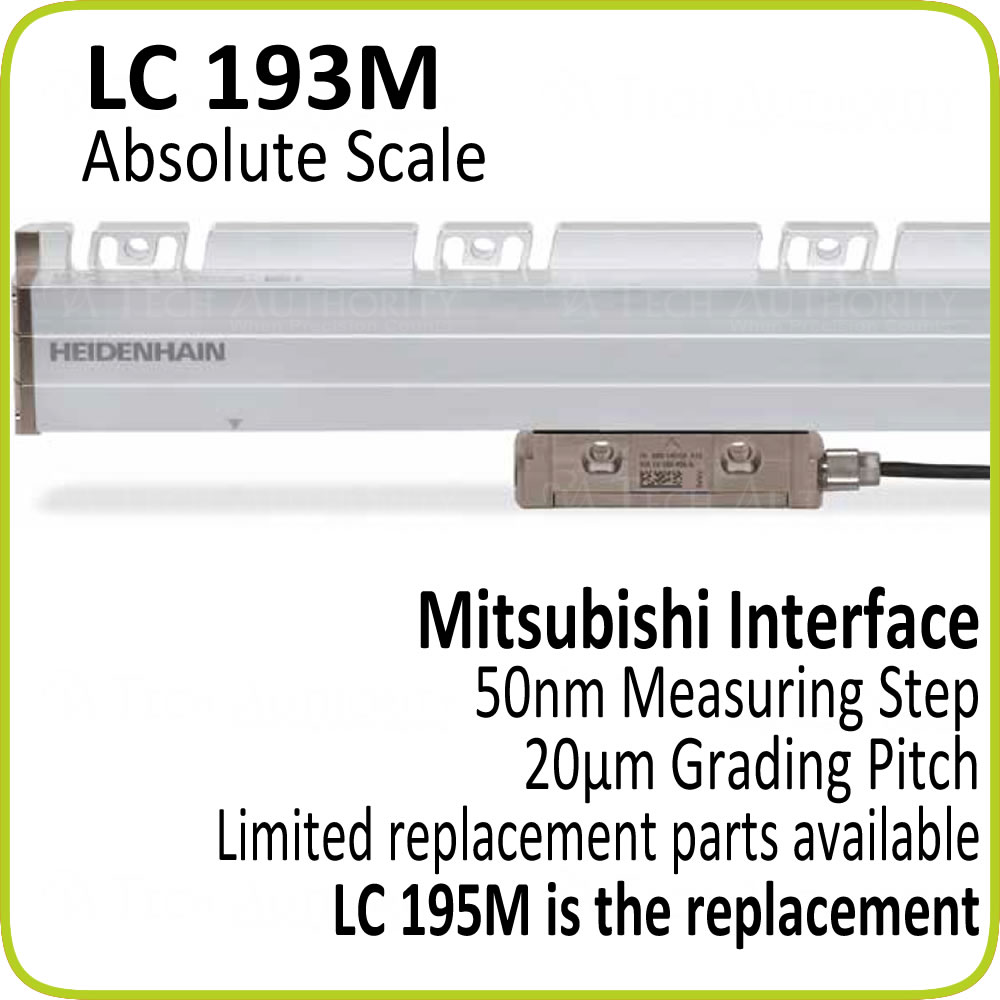

LC 193M (Mitsubishi Interface) by HEIDENHAIN

High positioning accuracy and traversing speed through single-field scanning

            click here for more images
Absolute linear encoders provide the absolute position value immediately upon switch-onŚwithout previous movement of the machine axes. The absolute value is transmitted serially to the subsequent electronics over the EnDat interface.

Measuring Method- Absolute
DIADUR glass scale with absolute track and incremental track
Absolute position values- EnDat 2.1
Incramential Signals- 1 Vss
Signal Period- 20 Ám
Accuracy Grade- ▒ 5 Ám or ▒ 3 Ám
