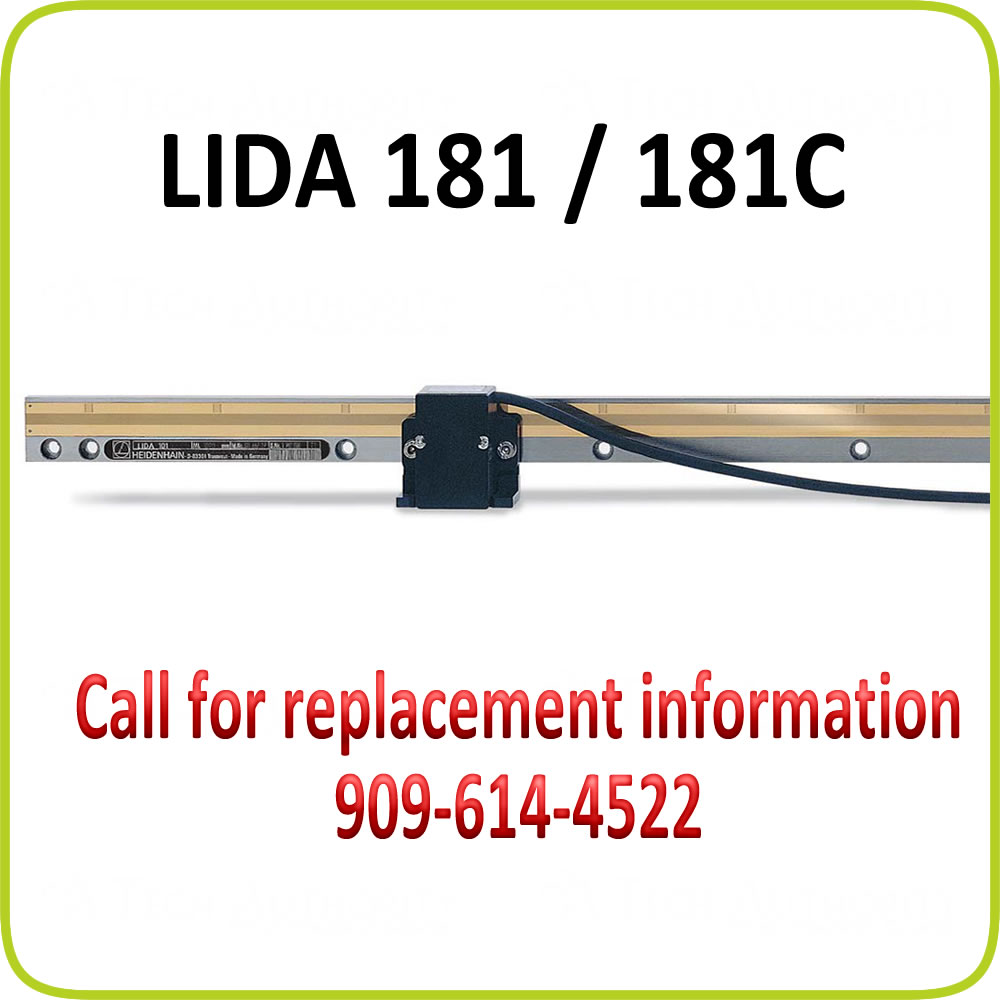

LIDA 181 / 181C by HEIDENHAIN

Incremental linear encoders for high traversing speeds with 1 Vpp Output

            click here for more images
The AURODUR steel scale tape of the LIDA 181 is cemented into a steel scale carrier and then calibrated. A calibration chart is supplied with every scale.




Measuring standard - AURODUR steel scale tape
Output signals - 1 Vpp
Signal period - 40 um
Accuracy grades - ▒ 5 Ám or ▒ 3 Ám
Recommended measuring steps - 1 um or 0.1 Ám
Measuring lengths - 220 mm to 2040 mm
Reference mark - One position selectable or distance-coded
