This product has been discontinued by the manufacturer however parts may still be available
Click HERE to view the replacement item

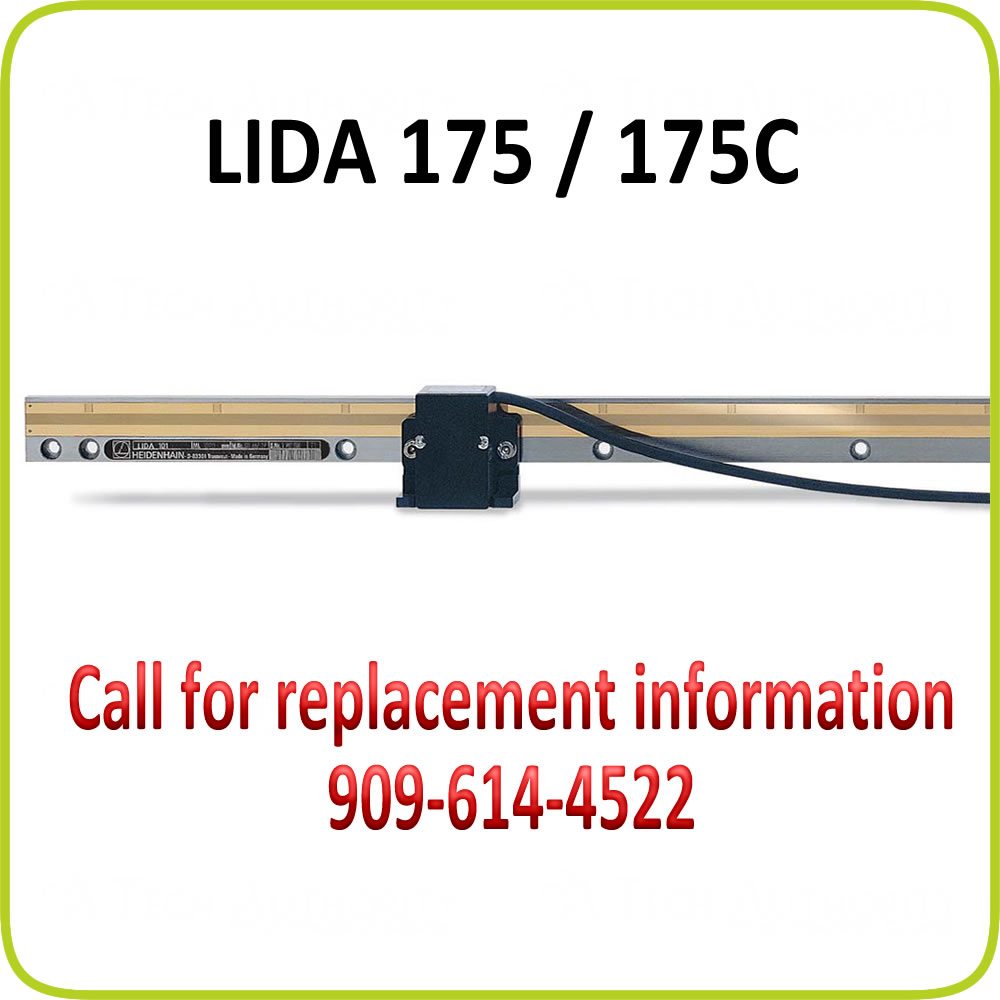

LIDA 175 / 175C by HEIDENHAIN

Incremental linear encoders for high traversing speeds and long traverses up to 30m with 5v TTL Quadrature Output

            click here for more images
The LIDA 175 is intended for larger measuring lengths up to 30 m (100 ft). Here the one-piece AURODUR steel scale tape is inserted into a scale housing consisting of several standard sections; it is then stretched to a defined tension and fixed at both ends to the machine bed.

Measuring standard - AURODUR steel scale tape
Output signals - 5v TTL Quadrature
Signal period - 8 um or 4 um
Accuracy grades - ▒ 5 Ám or ▒ 3 Ám
Recommended measuring steps - 1 um
Measuring lengths - 140 mm to 30040 mm
Reference mark - One position selectable or distance-coded
