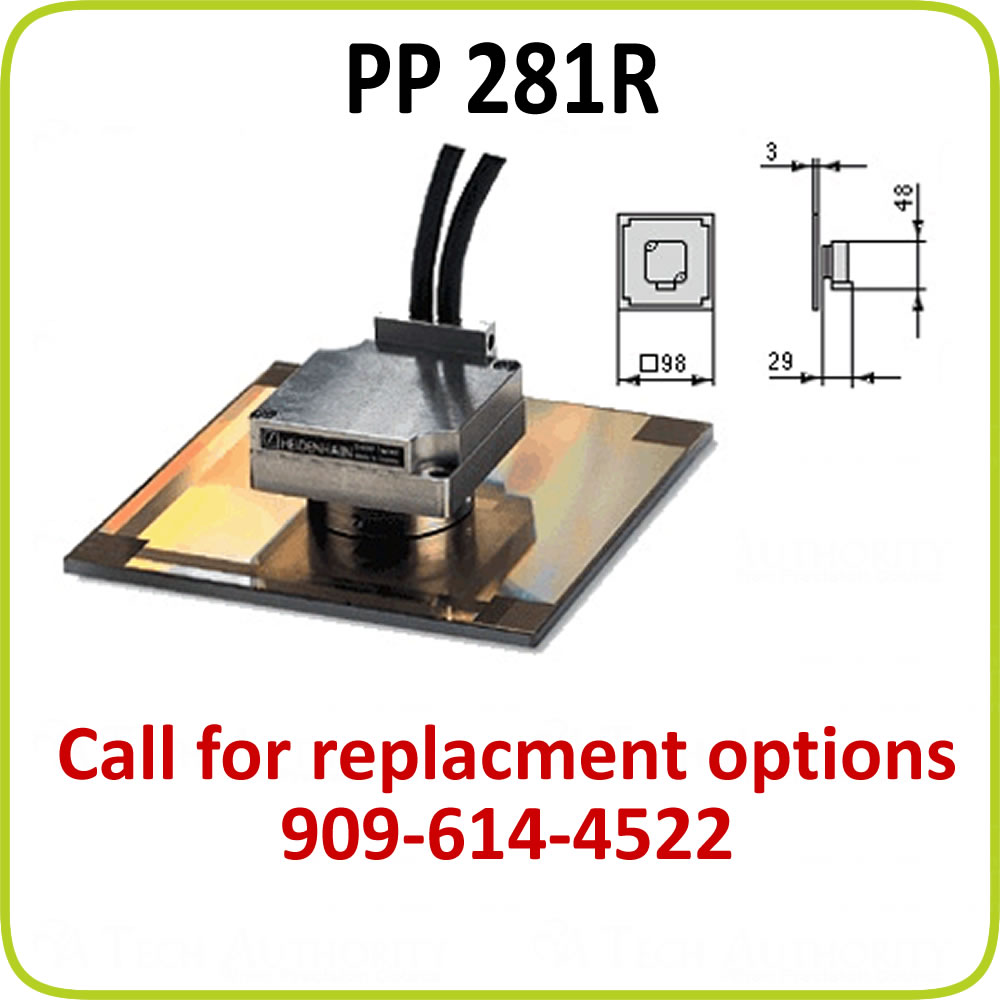

PP 281 by HEIDENHAIN

Incremental two-coordinate encoder for measuring steps of 1um to 0.05um with 1Vpp Output

            click here for more images
The PP 281R incremental two-coordinate encoder can measure positions in a plane.

Two reference marks, one for each measuring direction, serve to reproduce a datum.











Measuring standard - Two-coordinate DIADUR phase grating on glass
Output signals - 1Vpp
Signal period - 4 um
Accuracy grades - ▒ 1 Ám
Recommended measuring steps - 1 um to 0.01 Ám
Measuring lengths - 68 mm x 68 mm (other ranges available upon request)
Reference mark - One per measuring direction
