Products : Inspection & Metrology : Gauging : MT 25B (Ball-Brush Guide)

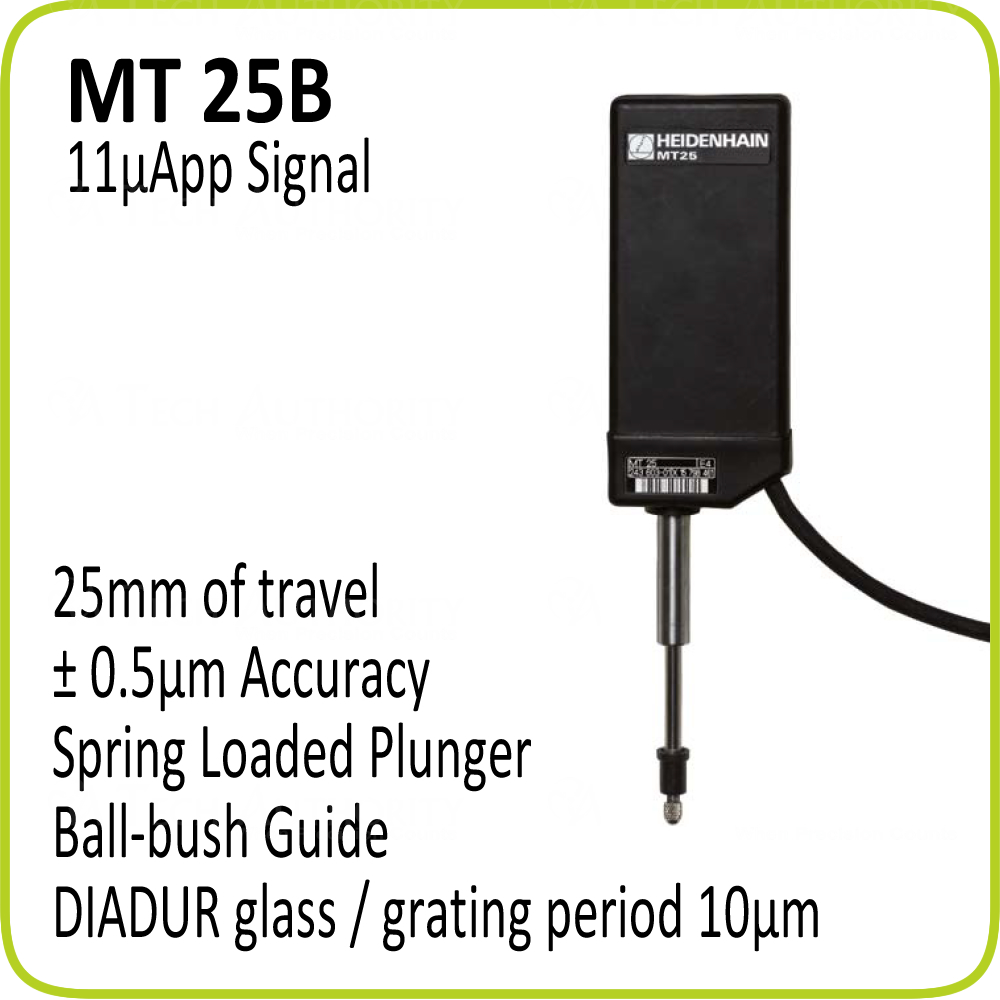

MT 25B (Ball-Brush Guide) by HEIDENHAIN

Rugged length gauge with plunger actuation by cable lifter or contact, ball-brush guides for increased plunger stability.

            click here for more images
MT25 series gauge is ideal for precision measuring stations and testing equipment. They come in many different plunger configurations: spring-loaded, ball-brush, pneumatic and water resistant.


System Accuracy 0.5m
Recommended Measuring Steps 0.5m to 1m
Output signal 11App
Reference Mark Approx. 5.5mm below upper stop
Measuring Range 25mm (0.47 in.)
Signal Period 10m




Share this item on Facebook


Download a brochure on MT 25B (Ball-Brush Guide) in pdf format
size: 4059 KB


Download package guide on MT 25B (Ball-Brush Guide) in pdf format
size: 1691 KB




View other products by HEIDENHAIN

Request Literature on MT 25B (Ball-Brush Guide)

Click here for a printable version of this page

Visit the HEIDENHAIN web site
