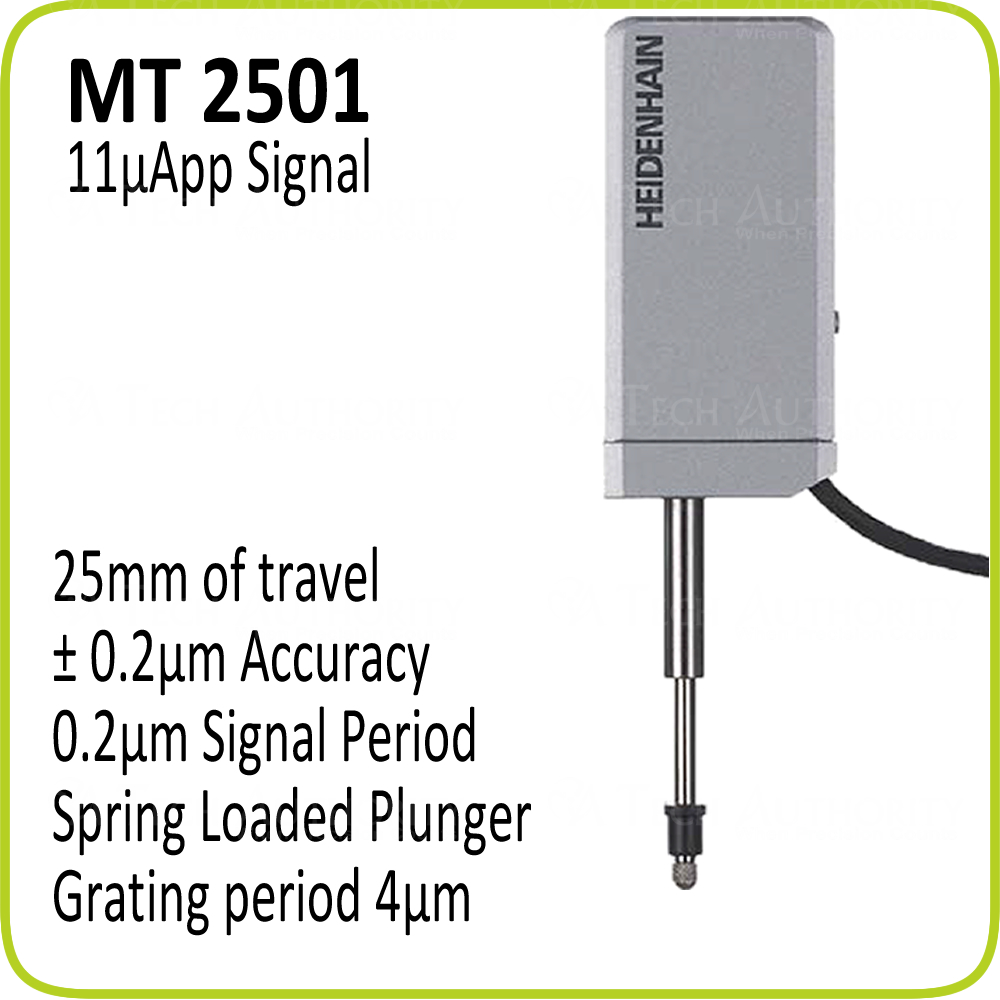

MT 2501 by HEIDENHAIN
Rugged standard version like MT 1201, but for measuring ranges up to 25 mm (1 in.)
click here for more images
With their high system accuracy and small signal period, the HEIDENHAIN-Metro length gagues are ideal for precision measuring stations and testing equipment. They feature ball-brush guided plungers and therefore permit high radial forces.
Rugged standard version with ball-guided plunger for radial forces up to 0.8 N; Plunger actuation by cable lifter or contact. DIADUR phase grating on Zerodur® glass ceramic.
Grating Period 4 µm
System Accuracy ± 0.2 µm
Recommended Measuring Steps 0.5 µm to 0.05 µm
Output signal 11 µApp
Reference Mark Approx. 1.7 mm below upper stop
Measuring Range 25 mm (1 in.)
Signal Period 2 µm
