Brand : HEIDENHAIN

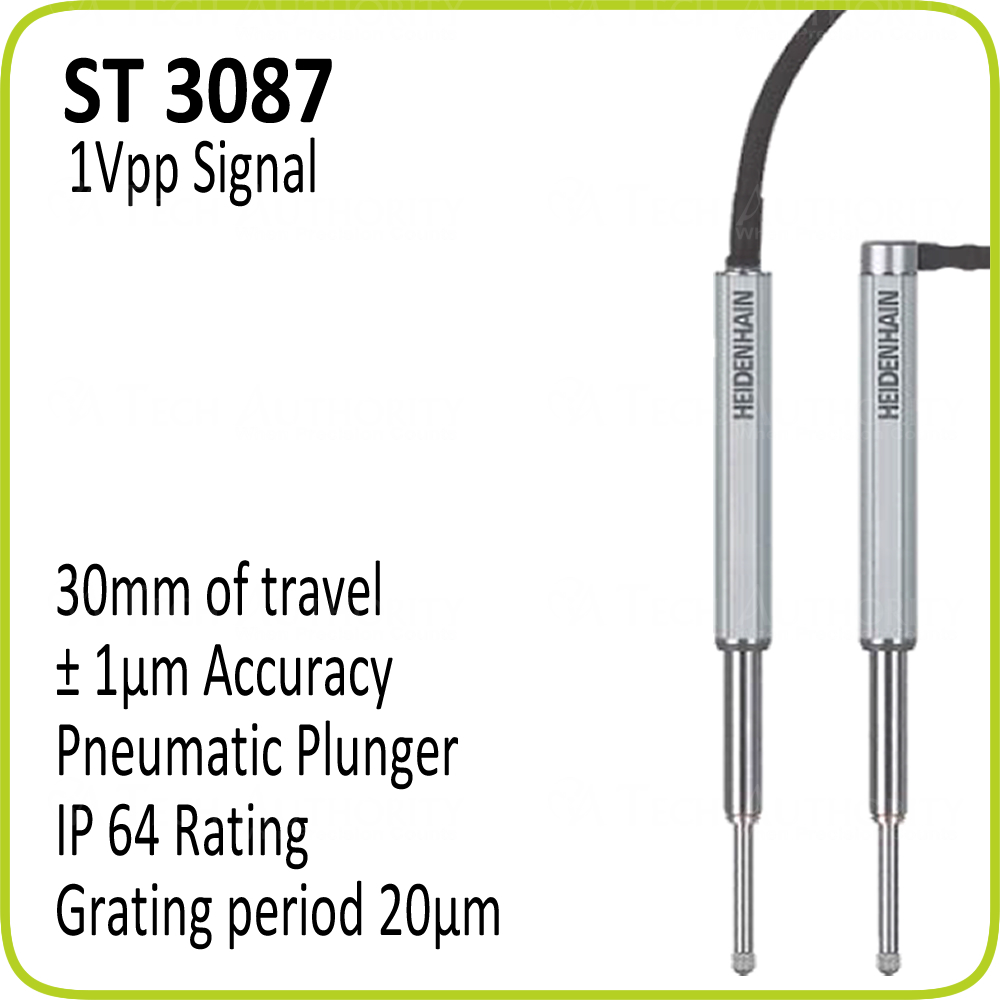

ST 3087
-
The HEIDENHAIN SPECTO ST 3087 series length gauges are designed for measuring stations and multi-gauging fixtures with pneumatic operation.
- Request A Quote
Description
The HEIDENHAIN ST 3087 length gauge offers the following features…
- 30mm plunger travel
- ±1µm accuracy
- 20µm signal period
- Single reference mark
- Plunger, pneumatic operation
- ≥ 0.8N radial force
- Operating temperature: 10°C to 40°C
- TTL signal (x5 and x10)
- Protection rating IP64
- 1.5 meter cable with DB15 or M23 12 pin connector
