Brand : HEIDENHAIN

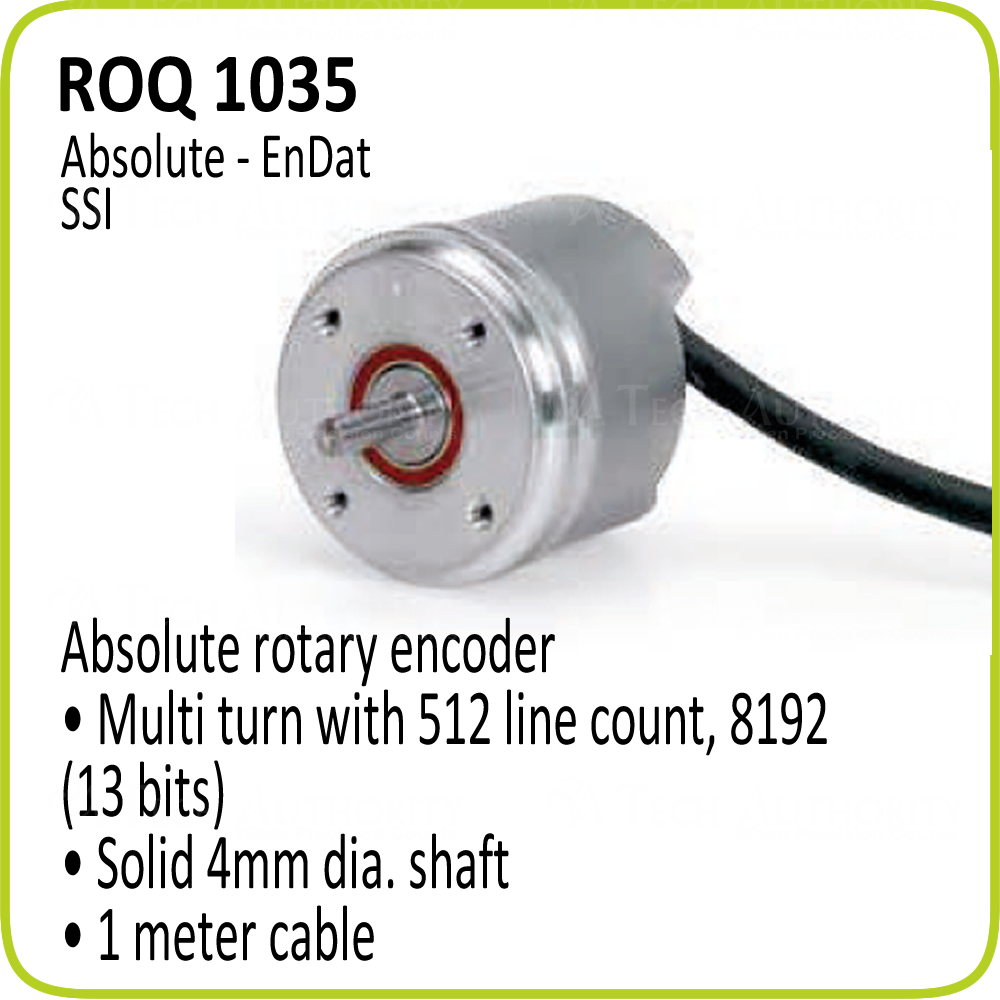

ROQ 1035
-
HEIDENHAIN ROQ 1035 absolute multiturn encoders feature a 4mm dia shaft and EnDat2.2 interface.
- Request A Quote
Description
HEIDENHAIN ROQ 1035 absolute encoder, 4mm dia shaft, down to ±60" accuracy EnDat01 interface.
ROQ 1035 series absolute rotary encoders with integral bearing
- Synchro flange
- Solid shaft for separate shaft coupling
- Positioning accuracy of down to ±60"
- 8 388 608 positions/rev. (23 bits)
- Multiturn functionality for up to 4096 revolutions (12 bits)
- Max. operating temperature: 100 °C
- Interface options: EnDat and DRIVE-CLiQ
- Housing diameter ≈ 35 mm
- ≤12000 rpm for continuous position value
- 1 meter cable with M12 coupling
