Brand : HEIDENHAIN
ROD 630
-

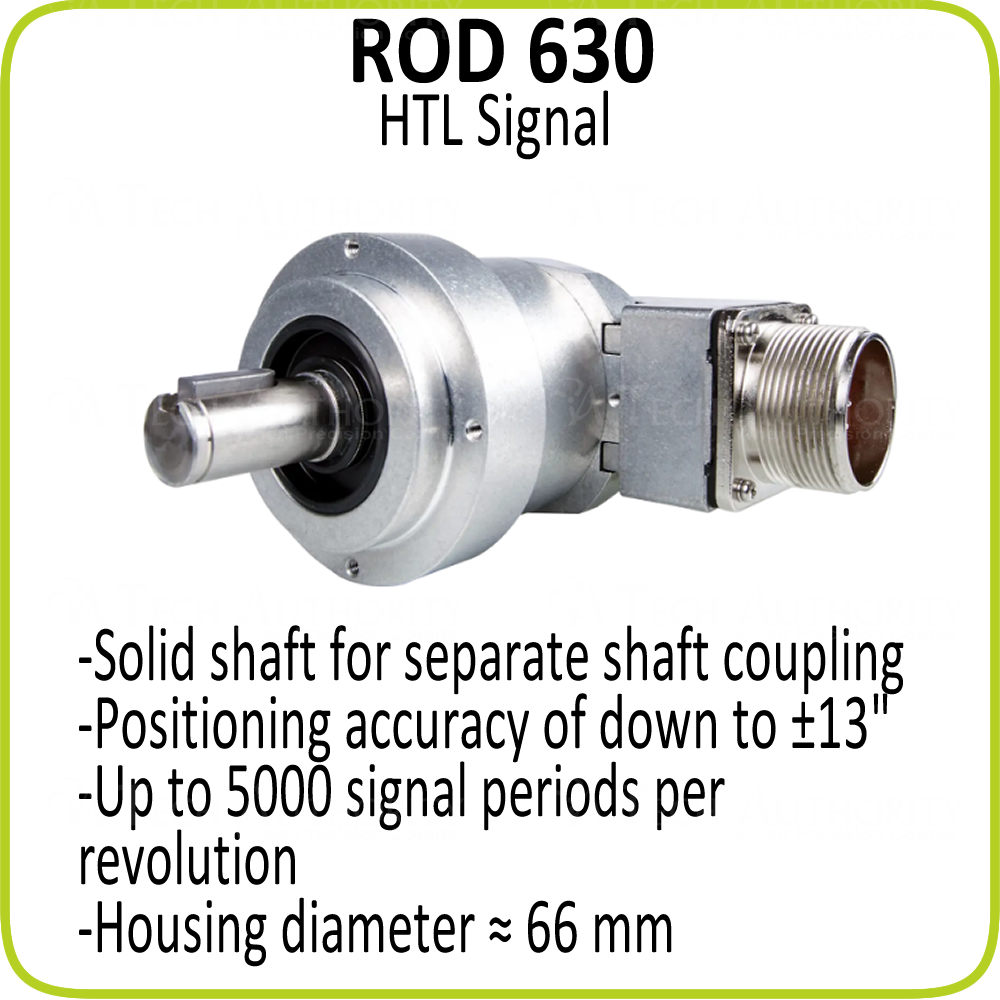

HEIDENHAIN ROD 630 incremental encoder, 15mm dia shaft with clamping flange and HTL output signal
- Request A Quote
Description
HEIDENHAIN ROD 630 incremental encoder, 15mm dia shaft, down to ±13" accuracy, HTL signal output.
ROD 630 incremental rotary encoders with integral bearing
- Solid shaft for separate shaft coupling
- Positioning accuracy of down to ±13"
- Up to 5000 signal periods per revolution
- Max. operating temperature: 85 °C
- Protection rating: IP66
- Interface: HTL
- Housing diameter ≈ 66 mm
- Shaft load 75N
- 17 pin radial flange socket
