Brand : HEIDENHAIN

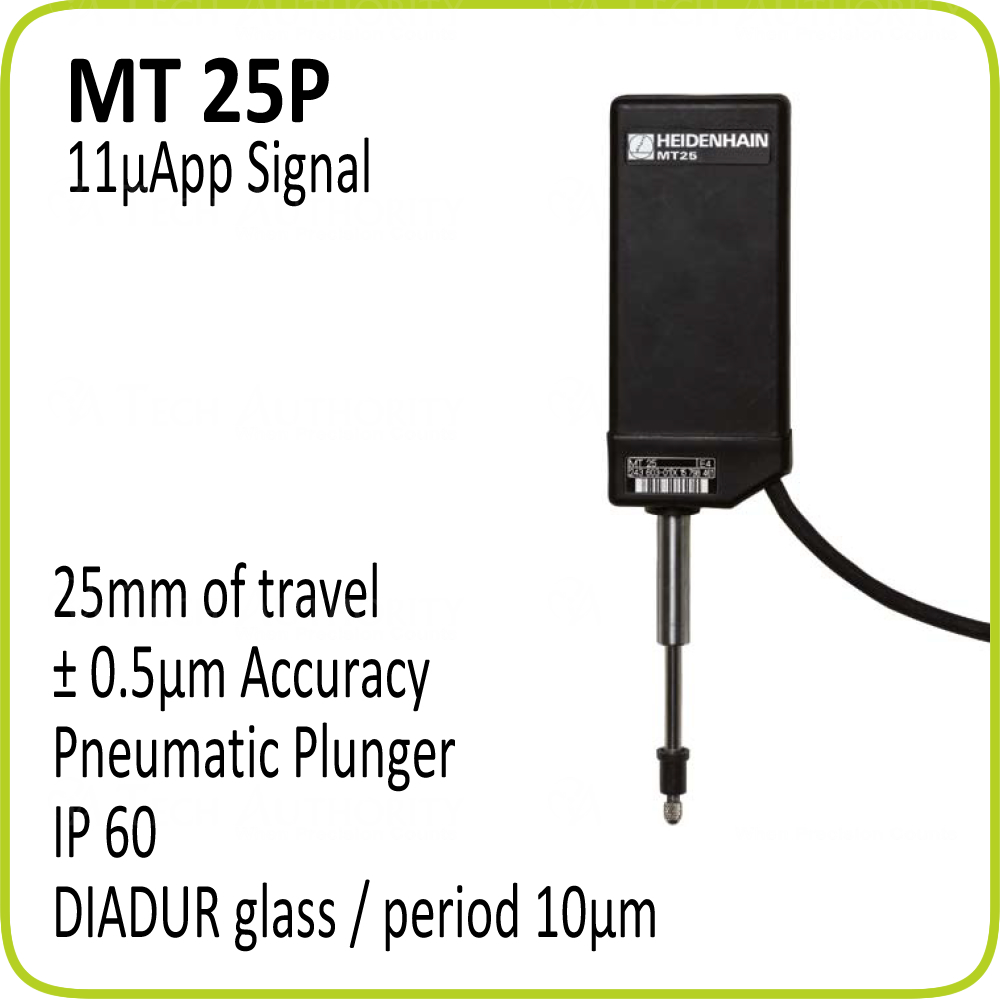

MT 25P (Pneumatic)
-
The HEIDENHAIN METRO MT 25P length gauge utilizes pneumatic pressure to move the plunger actuation allowing for hands-free measuring tasks.
- Request A Quote
Description
The HEIDENHAIN MT 25P length gauge is ideal for precision measuring stations and testing equipment, allowing controlled pneumatic pressure to activate the plunger hands free.
- 25mm plunger travel
- ±0.5µm accuracy
- 10µm signal period
- Measuring Steps 0.5µm to 1µm
- Single reference mark located 5.5mm from upper stop
- Plunger actuated by pneumatic pressure
- Operating temperature: 10°C to 40°C
- 11µApp signal
- Protection rating of up to IP50
- 1.5 meter cable with a M23 12 pin connector
