Brand : HEIDENHAIN

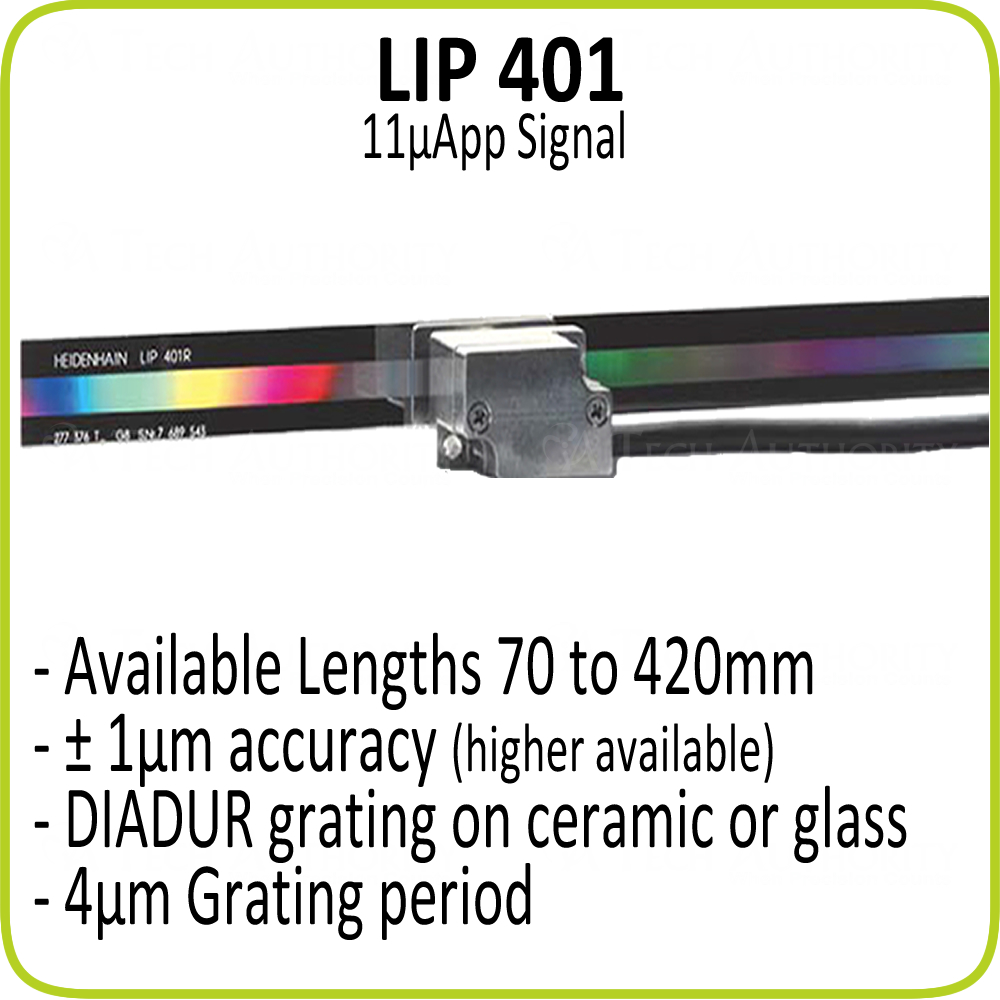

LIP 401
-
HEIDENHAIN LIP 401 incremental exposed linear encoder for measuring steps of 1um to 0.1um with 11uApp output signal.
- Request A Quote
Description
HEIDENHAIN LIP 401 utilized a phase grating on glass with a grating period of 4µm, manufactured in the DIADUR process, serves as a measuring standard for this LIP incremental linear encoder with 11uApp Output. The scales of LIP linear encoders are fixed with HEIDENHAIN PRECIMET® elastic adhesive film directly onto the mounting surface. This adhesive film ensures a defined thermal behavior and is resistant to solvents. The mounting procedure is quite fast thanks to its simplicity and to relatively large mounting tolerances.
- Measuring standard - DIADUR phase grating on Zerodur glass ceramic or glass
- Output signals – 11µApp
- Signal period - 4um
- Accuracy grades - ±1μm, ±0.5μm
- Measuring lengths - 70mm to 420mm
- Reference mark - One at midpoint of measuring length or none
- Cable: 0.5m, 1m, 2m or 3m with D-sub connector (15-pin)
- Operating temp: 0 °C to 40 °C
