Brand : HEIDENHAIN

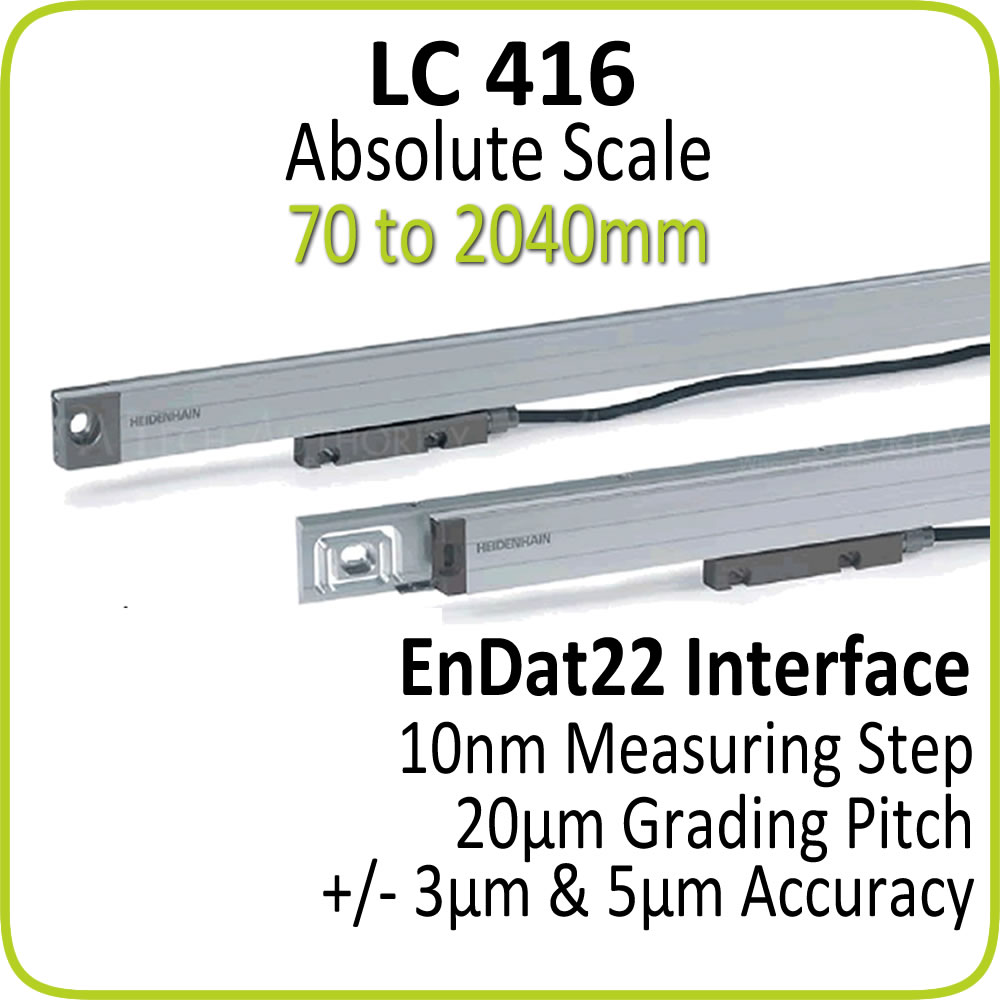

LC 416
-
The HEIDENHAIN LC 416 sealed absolute slimline linear scale for travels up to 2040mm, optimized scanning with EnDat2.2 interface features a compact design for limited installation space and easy installation with mounting rail. The LC 4xx series offers a variety of interfaces, such as EnDat, Fanuc, Mitsubishi, Panasonic, and DRIVE-CLiQ.
- Request A Quote
Description
The HEIDENHAIN LC 416 absolute sealed linear encoder with small cross section offers HEIDENHAIN's new optimal scanning principle and has the following features:
- Measuring lengths from 70mm to 2040mm
- Accuracy grades of 3µm or 5µm
- 20µm grating period
- Two measuring steps: 1.2500nm and 10.0000nm
- EnDat2.2 data interface
- Max traversing speed of 180 m/min
- Operating temperature from 0 to 50 °C
