Brand : HEIDENHAIN

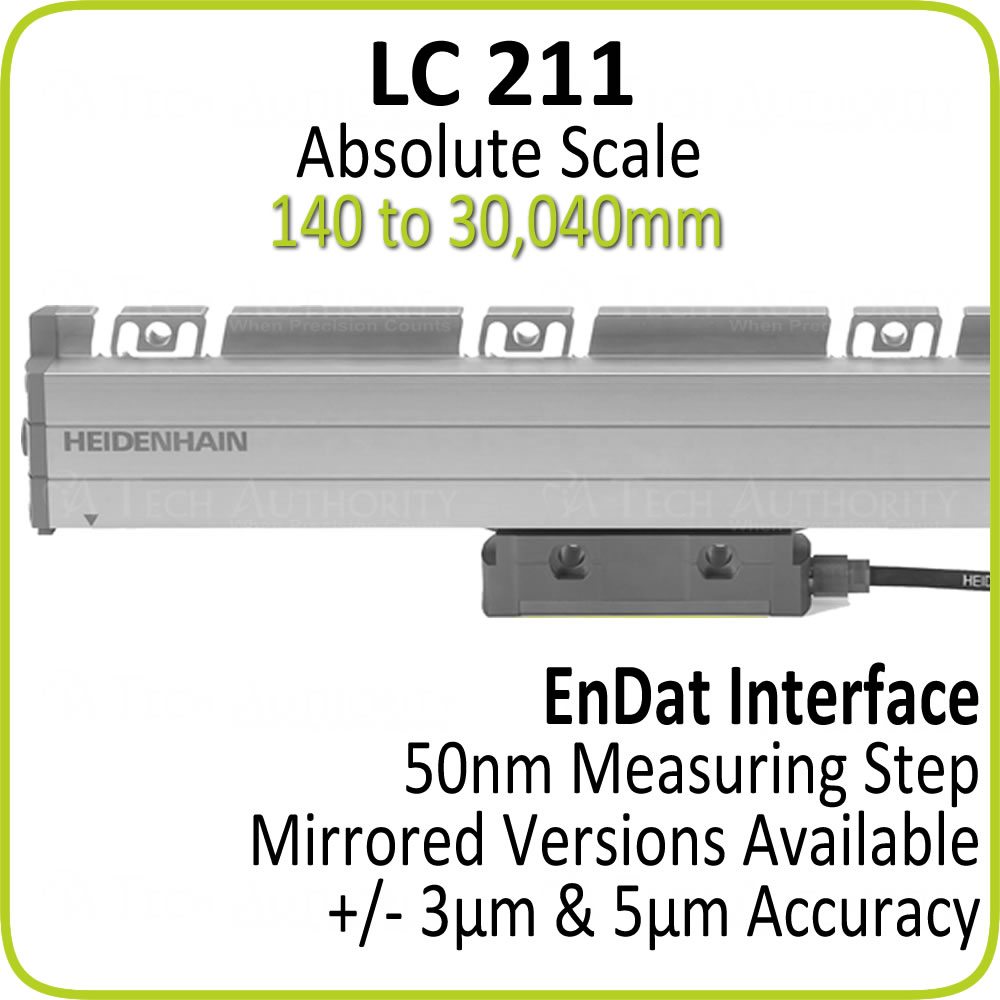

LC 211
-
The HEIDENHAIN LC 211 absolute sealed linear encoder with full-size scale housing comes either as a single-section or multi-sectional scale configuration, complete encoder with selectable thermal fixed point, with integrated seal which is ideal for vibration tolerance.
- Request A Quote
Description
The HEIDENHAIN LC 211 absolute interface linear scale features include:
- METALLUR steel scale tape
- Single section scale measuring lengths from 440mm to 4240mm
- Multi- section scale measuring lengths from 3240mm to 28040mm
- 5µm accuracy grade
- 40µm grating period
- EnDat2.2 interface
- Two measuring steps: 12.5000nm and 50.0000nm
- Power supply: 3.6 V ... 14 V
- Operating temperatures from 0°C to 50°C
- IP64 protection when used with a HEIDENHAIN DA 400 air purge kit
