Brand : HEIDENHAIN

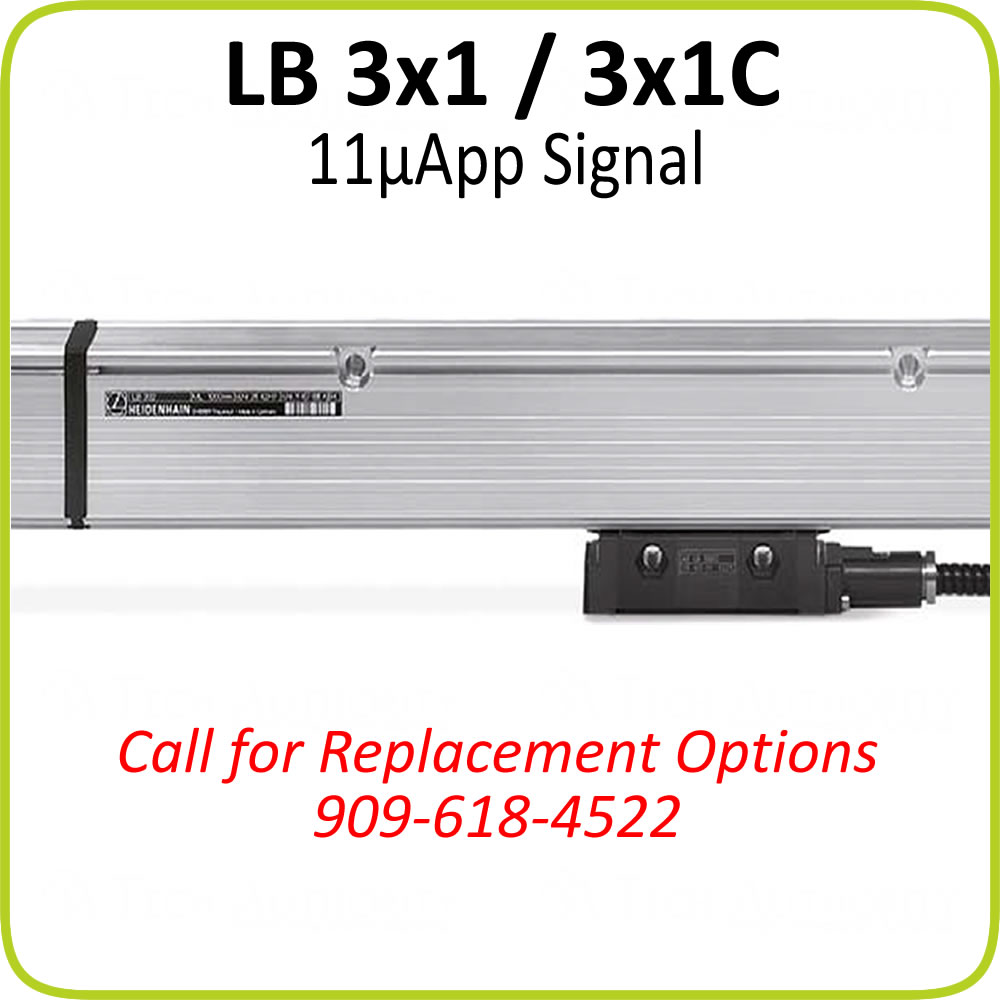

LB 3x1 / 3x1C / LB 326
-
The HEIDENHAIN LB 301/LB 381/LB 326 series incremental linear encoder with full-size scale housing with measuring lengths of up to 72m (30m and longer upon request), single-section version for up to 3040mm.
- Request A Quote
Description
The HEIDENHAIN LB 301/LB 381/LB 326 long travel, single piece and multi-sectional scales with AURODUR scale tape and housing sections for measuring lengths up to 30040mm in 200mm steps. Available housing sections: 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, and 2000mm.
- System accuracy: ± 5''
- Signal type: 11µApp incremental
- Reference mark: Selectable every 50mm or Distance-coded
- Signal period: 40µm
- Cutoff frequency (-3 dB): 400.00 kHz
- Power supply: 5V+5%-10%
- Degree of protection: IP53 or IP64 with compressed air from DA 400
- Operating temperature: ≥0/+50 °C
- Cable length: separate cable up to 150 meters
Scales manufactured prior to 2022 contained AURODUR scale tape. Replacement tape is now METALLUR, which will require a METALLUR compatible scanning unit. Please call for details.
